Lane Change Assistance Button -E530-, REMOVING AND INSTALLING: Removal

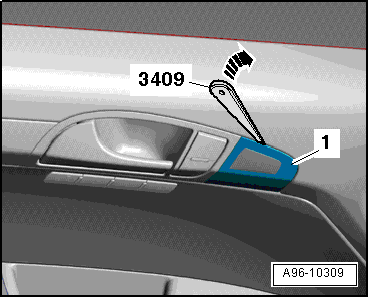

Fig 1: Identifying Removal Of Decorative Trim -1- From Door Trim -Arrow- Using 3409

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Carefully remove decorative trim -1- with Lane Change Assistance Button -E530- from door trim -arrow- using Trim Removal Wedge3409.

-- Disconnect the connector.

-- Carefully press Lane Change Assistance Button -E530- -1- out of decorative trim -2-.

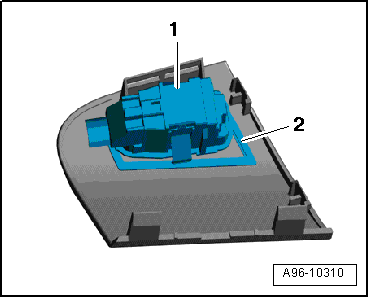

Fig 2: Identifying Lane Change Assistance Button -1- And Decorative Trim -2-

Courtesy of AUDI OF AMERICA, LLC
