Ashtray Lamp, Removing And Installing: Removal

Fig 1: Unclipping Mounting Frame For Selector Lever Boot From Center Console

Courtesy of AUDI OF AMERICA, LLC

-- Position selector lever in "N" position.

-- Turn off the ignition and remove the key.

-- Unclip mounting frame for selector lever boot -1- from center console and lift it upward -arrows-.

-- Fold selector lever boot upward.

-- Release retaining spring -2- and remove Selector Lever Transmission Range Position Display Unit -Y26- item -1- upward in direction of -arrow-.

-- Disconnect the connector.

Fig 2: Releasing Retaining Spring And Removing Selector Lever Transmission Range (TR) Position Display Y26 Upward

Courtesy of AUDI OF AMERICA, LLC

Vehicles without CD Changer in Center Console Storage Compartment:

-- Using a screwdriver -2-, pry center console storage compartment -1- out in direction of -arrow-.

Fig 3: Using Screwdriver -2- To Pry-Out Center Console Storage Compartment -1- In -Direction Of Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Reach through center console storage compartment opening and press installation frame -1- for Multimedia System Control Head -E380- up in direction of -arrow-.

Fig 4: Pressing Up Installation Frame -1- For Multimedia Control Head -Arrow-

Courtesy of AUDI OF AMERICA, LLC

Vehicles with CD Changer in Center Console Storage Compartment:

-- Reach through selector lever boot opening and press installation frame -1- for Multimedia System Control Head -E380- up in direction of -arrow-.

All Vehicles:

-- Unplug connectors.

-- Remove screws -arrows- and front ashtray housing -2-.

-- Disconnect ashtray and cigarette lighter lighting electrical connectors -1-.

Fig 5: Identifying Screws -Arrows-, Cigarette Lighter Lighting Electrical Connectors -1- And Front Ashtray Housing -2-

Courtesy of AUDI OF AMERICA, LLC

-- Release retaining clips -1- and securing bar -3-.

-- Remove ashtray light -2- toward rear.

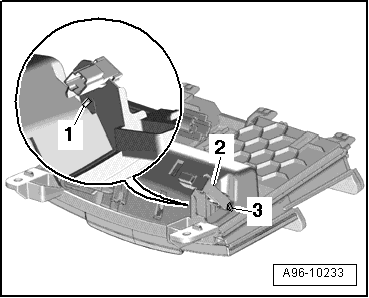

Fig 6: Identifying Retaining Clips -1-, Ashtray Light -2- And Securing Bar -3-
