Light Switch, Removing And Installing: Removal

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Use screwdriver to pry off cover to the side on left of instrument panel in direction of -arrow-.

Fig 1: Pry Instrument Panel Side Cover Off With A Screwdriver -Arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- If present, remove screw -1- and remove air duct -2-.

Fig 2: Air Duct And Screw

Courtesy of AUDI OF AMERICA, LLC

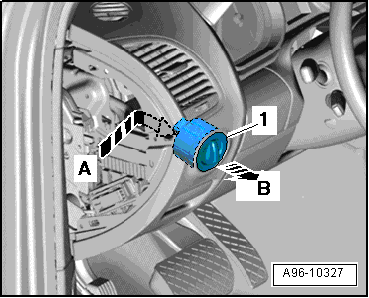

-- Reach through opening over side instrument panel vent and press light switch -1- out of instrument panel in direction of -arrow-.

-- Disconnect the connector.

Fig 3: Pressing Light Switch -1- Out Of Instrument Panel -Arrow-

Courtesy of AUDI OF AMERICA, LLC
