Load Level Button -E539- AND Power Pivoting Hitch Pivot Button -E474-, REMOVING AND INSTALLING: Removal

-- Turn off the ignition and remove the key.

-- Release luggage compartment right side trim cover -1- at place marked with in direction of -arrow A-.

-- Remove luggage compartment right side trim cover in direction of -arrow B-.

Fig 1: Identifying Release And Removal Of Luggage Compartment Right Side Trim Cover -1-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connector -1-.

-- Release retaining clips -arrows- and carefully press Load Level Button -E539- /Power Pivoting Hitch Pivot Button -E474- item -2- out of luggage compartment right side trim cover.

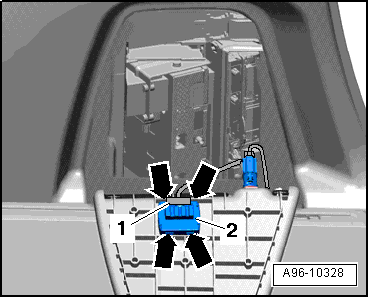

Fig 2: Releasing Retaining Clips -Arrows- To Press Load Level Button -2- Out Of Luggage Compartment Right Side Trim Cover

Courtesy of AUDI OF AMERICA, LLC
