Large Luggage Compartment Roof Lamp Bulb, Removing And Installing: Removal

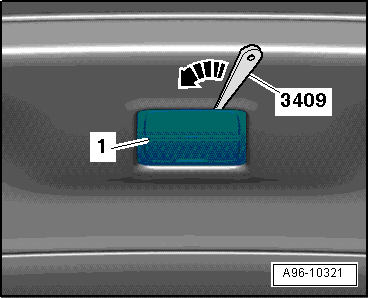

-- Carefully pry out luggage compartment lamp -1- out of headliner opening in direction of -arrow- using Trim Removal Wedge3409.

-- Disconnect the connector.

Fig 1: Prying Out Luggage Compartment Lamp -1- Out Of Headliner Opening -Arrow- Using 3409

Courtesy of AUDI OF AMERICA, LLC

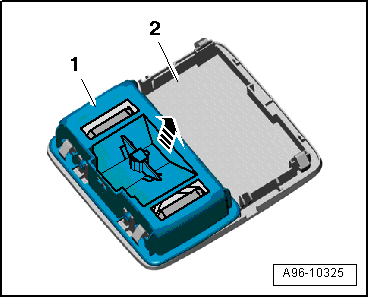

-- Carefully remove interior light socket -1- from lens -2- in direction of -arrows-.

Fig 2: Identifying Removal Of Interior Light Socket -1- From Lens -2- -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb -1- or -2- (12V, 6 W) from the clamping socket.

Fig 3: Identifying Bulb (12 V, 6 W) In Terminal Socket

Courtesy of AUDI OF AMERICA, LLC
