Inner Bulb Holder, Removing And Installing

Removal

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Pry off cover cap in direction of -arrow- using a screwdriver.

-- Turn socket -1- counterclockwise.

-- Remove the bulb sockets from the tail lamp housing.

-- Remove lamp from socket.

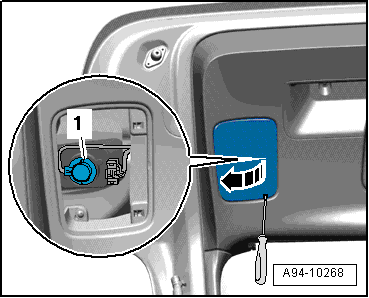

Fig 1: Turning Socket -1- Counterclockwise

Courtesy of AUDI OF AMERICA, LLC

Installation

Install in reverse order of removal. Note the following:

-- Insert new bulb into socket, do not touch glass cone with bare hands when doing so.

-- Secure socket by turning clockwise.
