Wheel Bearing, Replacing

Special tools, testers and auxiliary items required

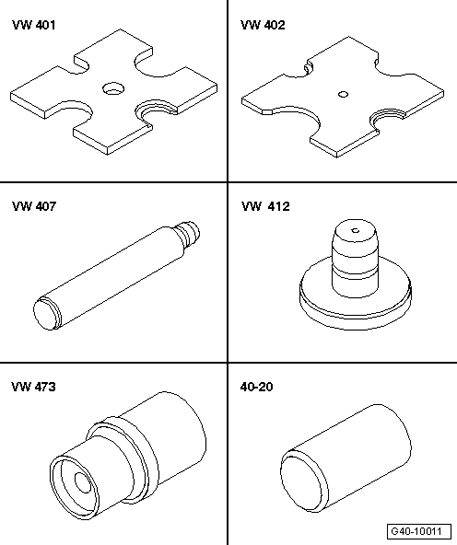

Fig 1: Identifying Special Tools - Wheel Bearing, Replacing
GW00029499Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Fig 2: Identifying Assembly Tool T40089/1 And Assembly Tool T40089/2
GW00022770Courtesy of VOLKSWAGEN UNITED STATES, INC.
Fig 3: Separating Device Kukko 17/2
GW00001457Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pressing wheel hub out of 92 mm diameter wheel bearing housing

Fig 4: Pressing Wheel Hub Out Of 92 Mm Diameter Wheel Bearing Housing
GW00022771Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bearing inner race from hub.

Fig 5: Inserting Separating Tool Between Bearing Inner Race And Sliding Washer
GW00022772Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • Use a commercially available separating tool , e.g. Kukko 17/2

This deforms slide washer and it must be replaced.

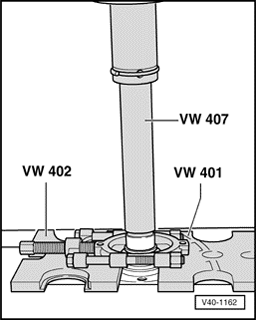

Fig 6: Pressing Bearing Inner Race From Hub
GW00006502Courtesy of VOLKSWAGEN UNITED STATES, INC.

Slide washer, replacing

Fig 7: Identifying Conventional Wheel Hub & Slide Washer
GW00019813Courtesy of VOLKSWAGEN UNITED STATES, INC.
Fig 8: Press Piece VW 473, Assembly Tool T40089/2, Slide Washer, Wheel Hub & Thrust Plate VW 401
GW00019815Courtesy of VOLKSWAGEN UNITED STATES, INC.
  1. Press piece VW 473
  2. Assembly tool T40089/2
  3. Slide washer
  4. Wheel hub
  5. Thrust plate VW 401
NOTE:
  • Slide washer must be pressed on up to wheel bearing hub radius.

Pressing wheel hub into 92 mm diameter wheel bearing

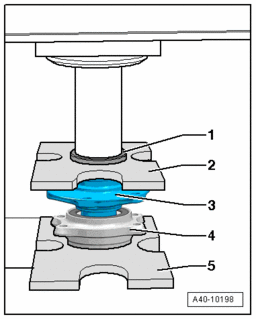

Fig 9: Punch VW 412, Thrust Plate VW 402, Wheel Hub, Ball Bearing & Thrust Plate VW 401
GW00029500Courtesy of VOLKSWAGEN UNITED STATES, INC.
  1. Punch VW 412
  2. Thrust plate VW 402
  3. Wheel hub
  4. Ball bearing
  5. Thrust plate VW 401
NOTE:
  • The reworked surface on the wheel bearing outer race faces down.
CAUTION: When installing or pressing in, make sure there is no dirt or contaminants between the thrust plate VW 401 - 5  - and the ball bearing - 4  -.
