Side Trim, Tunnel Side, Removing and Installing

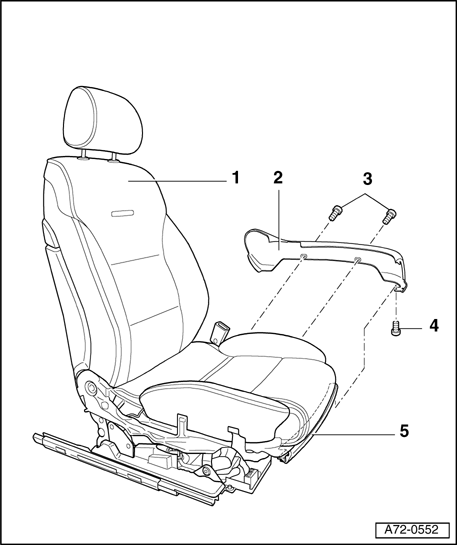

Fig 1: Side Trim, Tunnel Side Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front seat

2 - Side trim (tunnel side)

• Removing

• Remove seat → Seat, Removing and Installing .
• Mount the fixture for seat repair VAS 6136 on the engine and transmission holder VAS 6095.
• Attach the front seat to the fixture for seat repair VAS 6136.
• Remove bolts - 3  - (qty. 2).

• Remove screw - 4  -.
• Disengage the panels - 2  - at the front trim panel - 5  -.
• Remove side panel - 2  - toward rear.

3 - Screws, (qty. 2)

4 - Screw

5 - Front trim panel
