Rear Seat Rail Cover, Removing and Installing

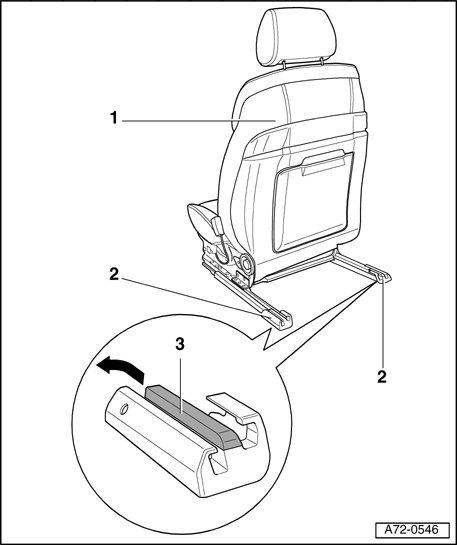

Fig 1: Front Seat, Seat Rail Cover & Retaining Tabs

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front seat

2 - Seat rail covers (qty. 2)

• Removing

• Move front seat - 1  - fully to the front.
• Lift retaining tabs - 3  - in direction of arrow and pull off seat rail cover - 2  -.

• Installing

• Installation is reverse of removal.

3 - Retaining tabs (2x)
