Ventilation Grille, Removing and Installing

Special tools, testers and auxiliary items required

• Special hook 3370

Removing

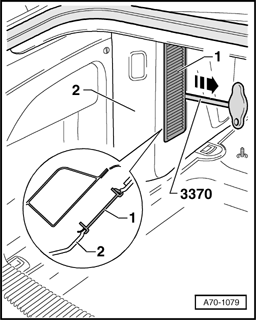

Fig 1: Ventilation Grille, Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Pull ventilation grille - 1  - on the side facing forward in -direction of arrow- out of side luggage compartment trim - 2  - using hook for front end 3370.
• Pull off the U-shaped profile of ventilation grille in direction of vehicle travel from the side luggage compartment trim - 2  -.
• Remove ventilation grille.

Installing

Installation is reverse of removal.
