Center Backrest Section, Removing and Installing

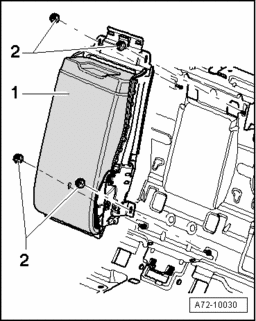

Fig 1: Backrest Center Section & Nuts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove left and right individual rear seats → Individual Rear Seat, Removing and Installing .
• Remove spacing device → Rear Shelf Trim and Spacer, Removing and Installing .
• Remove rear shelf trim panel → Rear Shelf Trim and Spacer, Removing and Installing .
• Remove nuts - 2  - (4x). Tightening torque 8 Nm.

• Remove backrest center section - 1  -.
