Front Trim, Removing and Installing

Removing

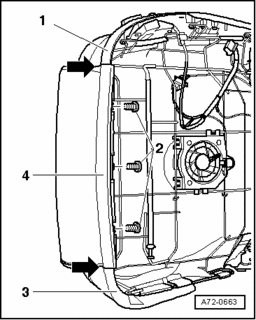

Fig 1: Door Sill Side, Bolts, Tunnel Side & Front Trim Panel

GW00030282

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove seat pan → Seat Pan, Removing and Installing .
Disengage front trim panel - 4 - at arrow positions (2x) from side panels on door sill side - 1 - and tunnel side - 3 -.
Remove bolts - 2 - (3x). 2.5 Nm.
Remove front trim panel - 4 -.

Installing

Install front trim panel - 4 - in reverse order of removal.
