Right door connector, disconnecting

Fig 1: Pressing Dust Protection Boot At Marking And Pulling Off

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Work procedure

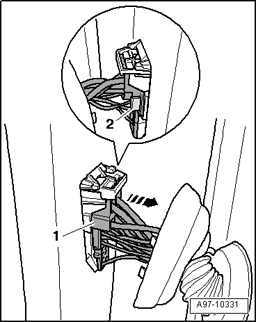

Fig 2: Releasing Door Connector And Removing Outward, Pressing Securing Guide

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Release door connector - 1 - and remove outward - arrow -, press securing guide - 2 - to do so.
Make sure, connector engages audibly at connection.
Press on dust protection boot until it engages audibly.

NOTE:

Check whether rubber lip of dust protection boot rests evenly all around A-pillar.
