Selector Lever Transmission Range (TR) Position Display Y26, removing and installing

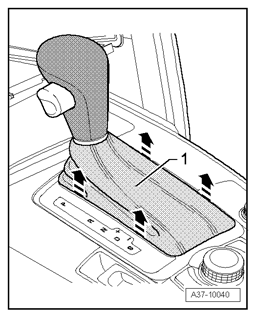

Fig 1: Unclipping Mounting Frame For Selector Lever Boot From Center Console

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing

• Place selector lever in position "N".

• Unclip mounting frame for selector lever boot - 1  - from center console and lift it upward - arrows  -.
• Fold selector lever boot upward.

Fig 2: Releasing Retaining Spring And Removing Selector Lever Transmission Range (TR) Position Display Y26 Upward

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Release retaining spring - 2  - and remove Selector Lever Transmission Range (TR) Position Display Y26 - 1  - - arrow  -.
• Disconnect electrical harness connector.

Installing

Installation is performed in the reverse order of removal.
