Glove Compartment Light W6, removing and installing

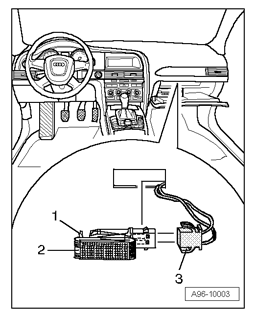

Fig 1: Identifying Catch, Glove Compartment Lamp, And Electrical Harness Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing

• Turn light switch into "0" position.
• Press in catch - 1  - using a flat screwdriver and pry out glove compartment lamp - 2  -.
• Disconnect electrical harness connector - 3  -.
• Remove bulb (12 V, 5 W) from socket on back side of glove compartment lamp.

Installing

Installation is performed in reverse order of removal, noting the following:

• Insert glove compartment lamp into opening and engage on opposite side.
