Door safety light and entry light, removing and installing

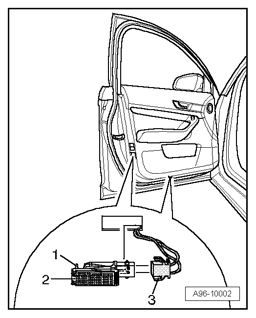

Fig 1: Identifying Catch, Door Entry Lamp And Electrical Harness Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing

• Press in catch - 1  - using a flat screwdriver and pry out door safety lamp or door entry lamp - 2  -.
• Disconnect electrical harness connector - 3  -.

Fig 2: Releasing Clips And Pulling Cover Off Above Light Bulb

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• If present, release clips - arrows  - and pull cover - 1  - off above light bulb.

Fig 3: Removing Light Bulb (12 V, 5 W) From Socket On Back Side Of Luggage Compartment Lamp

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove light bulb - 1  - (12 V, 3 W) from socket - 2  - on reverse side of door safety lamp and door entry lamp.

Installing

Installation is performed in reverse order of removal, noting the following:

• If present, install cover on door safety lamp.
• Insert door safety lamp or access lamp into opening and engage on opposite side.
