Light bulb for fog lamp, replacing - Audi A6
Removing
- Remove fog lamp → Fog lamp, removing and installing - Audi A6 .

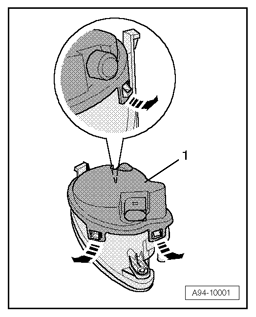

- Release securing guides - arrows - at cap - 1 -.
- Disconnect electrical harness connector - 2 - at bulb.
- Disengage wire clamp - 1 - and remove bulb - 3 - from housing.
Installing
CAUTION:
- Do not touch glass portion of bulb with bare hands. Even the smallest amount of moisture and/or contaminants from fingers that evaporates on the bulb during operation can cause the glass to cloud over.
- When installing housing cover, ensure proper seating. Water intrusion will damage headlamp.
Installation is performed in reverse order of removal, noting the following:
- Insert new bulb (H7 - 12V, 55W W5W Longlife) into housing, do not touch glass cone with bare hands when doing so.
- Secure bulb using wire clamp.
- Reconnect harness connectors and close housing cover.
- Adjusting fog lights 405.
