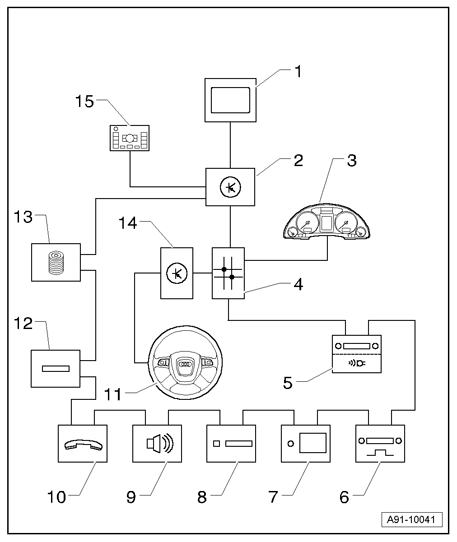

Data Bus On Board Diagnostic Interface J533 in connection with MMI - component overview

1 - Front Information Display Control Head J685

• In instrument panel, center

2 - Front Information Display Control Head Control Module J523

• Behind glove compartment

3 - Control module with indicator unit in instrument panel insert J285

• In instrument cluster

4 - Diagnostic interface for CAN-bus J533

• Gateway
• Behind glove compartment

5 - Radio R

• With Speech Input Control Module J507, depending on equipment
• In luggage compartment, left side, behind side trim

6 - Digital radio (DAB) R147

• In luggage compartment, left side, behind side trim

7 - TV Tuner R78

• In luggage compartment, left side, behind side trim

8 - Navigation System with CD Drive Control Module J401

• In luggage compartment, left side, behind side trim

9 - Digital Sound System Control Module J525

• In luggage compartment, left side, behind side trim

10 - Telephone Transceiver R36

• Beneath floor carpet in drivers footwell

11 - Multi-function steering wheel

12 - Media player in position 1 R118

• In glove compartment

13 - Media player in position 2 R119

• In glove compartment

14 - Steering Column Electronic Systems Control Module J527

• On steering column

15 - Multimedia Control Head E380

• In center console, center
