Vehicles with 4.2l FSI engines

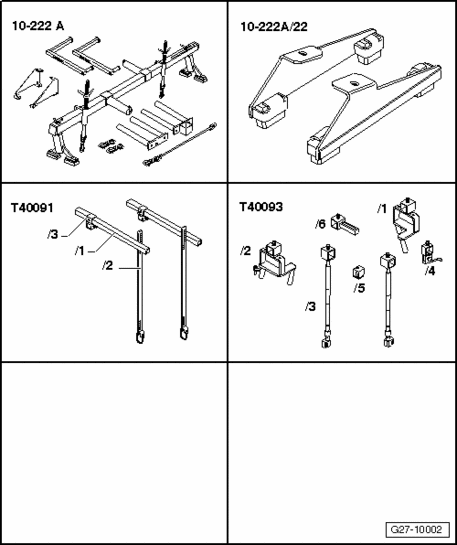

Fig 1: Engine Support Bridge 10 - 222 A, Adapter 10 - 222 A /22, Engine Support Basic Set T40091, And Engine Support Supplement Set T40093

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Engine support bridge 10 - 222 A
Adapter 10 - 222 A /22
Engine Support Basic Set T40091
Engine Support Supplement Set T40093

Fig 2: Removing Rear Engine Cover

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing

NOTE:

All cable ties opened or cut during engine removal must be reinstalled at the same locations during installation.
With ignition switched off, disconnect battery Ground (GND) wire → Battery, disconnecting and connecting .
Remove rear engine cover - arrows -.

Fig 3: Removing Rubber Seal For Plenum Chamber Cover & Plenum Chamber Cover

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove rubber seal - 1 - and remove plenum chamber cover - 2 -.

Fig 4: Removing Air Duct Screws & Air Ducts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - arrows -.
Remove air guides - 1 - and - 2 -.

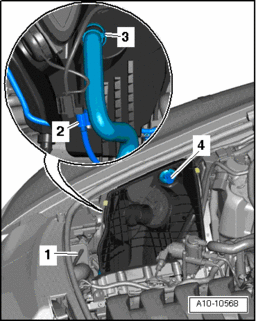

Fig 5: Identifying Electrical Harness Connector, Clips, And Hose Clamp

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Lay aside fuel line and line to EVAP canister at air filter housing and air guide pipe.
Disconnect electrical harness connector - 1 - at Mass Air Flow (MAF) Sensor G70.
Remove air guide pipe from air filter housing, release hose clamp - 5 - and open clips - arrows - to do so.

NOTE:

Disregard - 2, 3 and 4 -.

Fig 6: Opening Clips And Removing Upper Part Of Air Filter Housing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Open clips - arrows - and remove upper air filter housing.

Fig 7: Identifying Vacuum Line, Expanding Clip, Electrical Harness Connector, And Air Guide Hose

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect vacuum line - 1 -.
Remove pin of expanding clip - 4 -.
Remove lower air filter housing and disconnect electrical harness connector - 2 - at rear from Exhaust Gas Recirculation (EGR) Cooler Switch-Over Valve N345.
Remove air guide hose - 3 - for Secondary Air Injection (AIR) pump, press release buttons to do so.

Fig 8: Securing Adapter 10 - 222 A /4 Using Binder T40091/3 As Well As Supports T40093/1 And T40093/2 At Suspension Strut Domes

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Secure adapter 10 - 222 A /4 using binder T40091/3 as well as supports T40093/1 and T40093/2 at suspension strut domes.

Supports T40093/1 are marked for left and right sides of vehicle.

Fig 9: Assembling Other Components Of Engine Support Bridge 10 - 222 A

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Assemble other components of engine support bridge 10 - 222 A as depicted in illustration. Set supports T40093/3 on to seams of longitudinal members.
Engage hook 10 - 222 A /10 in engine lifting eye.
Pre-tension engine slightly using spindles of engine support bridge 10 - 222 A.

Fig 10: Identifying Noise Insulation And Mountings

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove right front wheel.
Remove noise insulations, loosen mounting parts - 1, 2, arrow - to do so.

Fig 11: Removing Stabilizer Bar Mountings

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - 1 - and - 2 - for left and right stabilizer mounts.

Fig 12: Identifying Nuts, Bolts, And Right Side Engine Mount Carrier

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Expose electrical wires at engine mount console.
Remove nut - 3 -.
Remove bolts - 1 - and - 2 - and remove right engine mount console.

Fig 13: Identifying Electrical Harness Connector And Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect electrical harness connector - 1 - at right engine mount.
Remove bolts - arrows -.
Remove right engine support with engine mount.

Fig 14: Identifying Bolts And Heat Shields

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - arrows -.
Remove heat shields - 1 - and - 2 -.

Fig 15: Identifying Ground (GND) Wire, Starter Electrical Wires, Bolts & Starter

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

B+ wire can only be removed after disconnecting electrical harness connector of terminal 50.
Unscrew Ground (GND) wire - 1 -.
Disconnect electrical wires - 3 - and - 4 -.
Unscrew bolts - 2 - and - 5 - and remove starter.

Installing

Installation is performed in reverse order of removal, noting the following:

NOTE:

During installation, re-install all cable ties at the same locations.
Install right engine mount console → 40 - Front Suspension Removal And Installation .
Install stabilizer → 40 - Front Suspension Removal And Installation .
Connect battery. Required actions Battery, disconnecting and connecting .

Tightening torques

Component		Nm
B+ wire to starter		16
Starter to transmission	M10 ¹⁾	65
	M12	65
¹⁾ Screw property class 10.9.
