Bosch generator - component overview

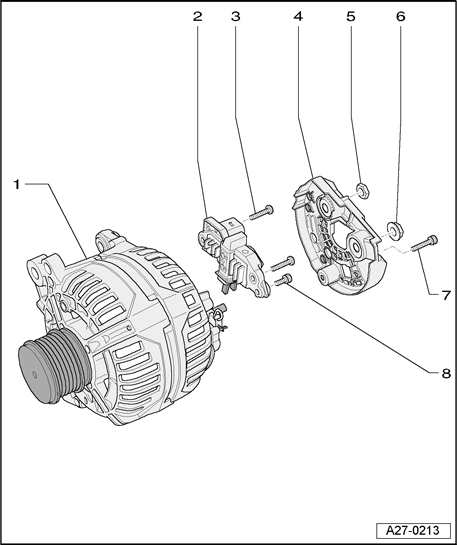

Fig 1: Bosch Generator, From MY 2001, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Generator

2 - Voltage regulator

• Removing and installing → Voltage regulator, removing and installing - Bosch generator
• Checking carbon brushes → Carbon brushes, checking - Bosch generator

3 - 2.5 Nm

4 - Cover

5 - Nut (12 Nm)

6 - Ribbed nut (30 Nm)

7 - 3 Nm

8 - 1.5 Nm
