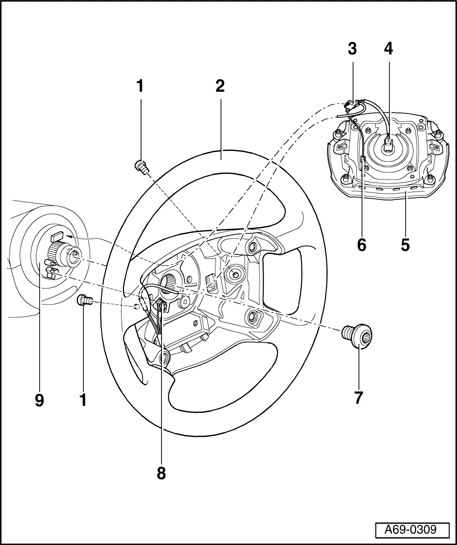

Steering wheel (standard steering wheel), assembly overview

1 - Torx bolts T30 (2x)

• Tightening torque 7 Nm

2 - Steering wheel

• Removing

• Remove airbag unit (standard steering wheel) → Airbag unit (standard steering wheel), assembly overview .
• Center steering wheel (wheels in straight-ahead position).
• Remove bolt - 7  -.
• Disconnect connector for coil - 3  -.

• Heated steering wheel: Disconnect connector for heated steering wheel - 8  -.
• Remove steering wheel - 2  -.

• Installing

• Installation is in reverse order of removal.
• Ensure that connector and catch engage fully (i.e. audibly).
• Attach steering wheel in center position (wheels in straight-ahead position).
• Replace bolt - 7  - and tighten to 50 Nm.

3 - Connector for coil

4 - Connector for airbag unit

5 - Airbag unit

6 - Horn connector

7 - Multi-point socket head bolt

• Tightening torque 50 Nm

8 - Connector for heated steering wheel

9 - Self-cancelling ring with slip ring
