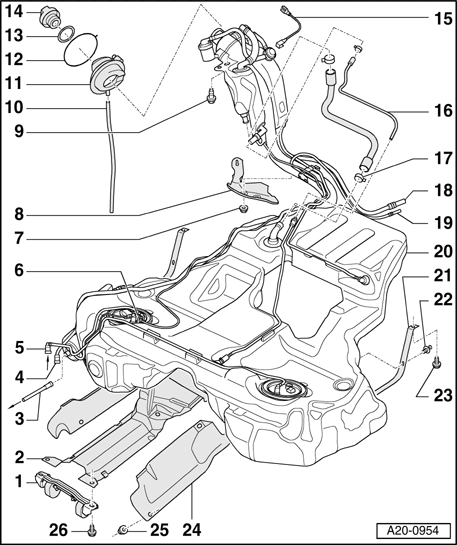

Fuel tank with attachments, assembly overview: Notes
NOTE:
- The fuel system with return line is shown in illustration.
1 - Bracket
- For exhaust system
2 - Carrier plate
3 - Fuel supply line
- From fuel filter
- To engine
- Do not kink
- To disconnect, press release button on connection piece
4 - Ventilation line
- From EVAP canister to Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
- Do not kink
- To disconnect, press release button on connection piece
- Clipped in on fuel tank
5 - Fuel return line
- From engine
- Clipped in on fuel tank
6 - Electrical harness connector
- For Fuel Tank Lock Switch F314
- Checking electrical → Fuel Tank Lock Switch F314 , checking
7 - 2 Nm
8 - Heat shield
- For fuel delivery connection
9 - 23 Nm
10 - Overflow hose
11 - Rubber gasket
12 - Circlip
13 - Seal
- Replace if damaged
14 - Cap
15 - Ground (GND) connection
- For discharging electrostatic charge
- Installed position/check requirements Position of Ground (GND) connection
- After installing, check electrical connection of metal ring at fuel filler tube to a bare area of chassis using Ohm meter - Specified value: approx. 0 Ω
16 - Ventilation line
17 - Spring clip
18 - Ventilation line
- From gravity valve to EVAP canister
- To remove, press release ring on EVAP canister
19 - Ventilation line
- From EVAP canister to Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
- To remove, press release ring on EVAP canister
- Clipped in on fuel tank
20 - Fuel tank
- Removing and installing → Fuel tank with attachments, removing and installing
21 - Securing strap
22 - Spreader clip
23 - 23 Nm
24 - Heat shield
- For fuel tank
25 - 2 Nm
26 - 23 Nm
