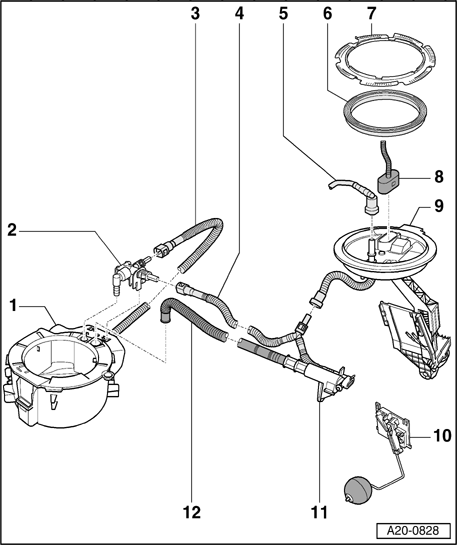

Part 2 (left chamber)

1 - Baffle housing

• With suction jet pump

2 - Distribution piece

• Different versions, allocation
• Clipped in on baffle housing with catches
• To remove, press toward right so that catches disengage and lift upward

3 - Fuel line

• To suction jet pump in baffle housing

4 - Fuel return line

• From left locking flange

5 - Fuel return line

• From engine/from fuel filter
• To disconnect, press release button on connection piece
• Do not kink
• Clipped in on fuel tank

6 - Seal

• Replace
• Install dry

7 - Locking ring

• Use wrench T10202 to remove and install
• Tighten to 145 Nm

8 - Electrical harness connector

• For Fuel Supply Sensor 2 G169

9 - Locking flange

• Installed location Installing

10 - Fuel supply sensor 2 G169

• Resistance values, checking → Fuel Level Sensor 2 G169 , checking
• Removing and installing → Fuel Level Sensor 2 G169 , removing and installing

11 - Suction jet pump

• With lines
• Different versions, allocation
• Secured to locking flange
• Function → Suction jet pump, function

• Removing and installing → Suction jet pump in left fuel tank chamber, removing and installing

12 - Fuel delivery line

• From suction jet pump, right side
