Turn Signal Switch E2 , removing and installing

Removing

• Remove steering column switch module → Steering column switch module, removing and installing .

Fig 1: Releasing Clip Fasteners To Remove Spiral Spring From Steering Column Switch Module

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Carefully release clip fasteners - arrows  - and remove spiral spring - 1  - from steering column switch module.

Fig 2: Removing Steering Angle Sensor G85 From Steering Column Electronic Systems Control Module J527

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove Steering Angle Sensor G85 - 1  - from Steering Column Electronic Systems Control Module J527 in direction of - arrow  -.

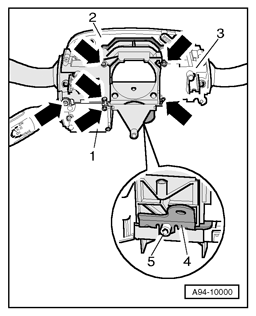

Fig 3: Identifying Screws, Steering Column Electronics Systems Control Module, Windshield Wiper/Washer Switch, And Retaining Clip

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove screws - arrows  -.
• Remove the Steering Column Electronics Systems Control Module J527 - 2  - and Windshield Wiper/Washer Switch E22 - 3  - from steering column switch module.
• Remove Cruise Control Switch E45 - 1  - from steering column switch module.
• Remove screw - 5  - and remove retaining clip - 4  -.

Installing

Further Install in reverse order of removal, noting the following:

• Ensure all fasteners and electrical connectors are properly connected and locked into place.
• Install steering column switch module Installing .

Tightening torques
