Terminal Housings with Insulation Displacement Terminal, Repairing

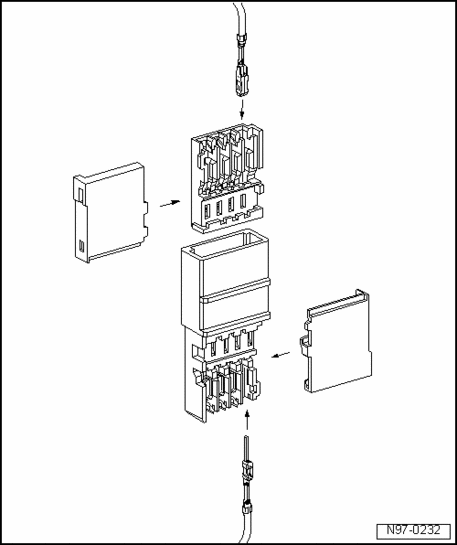

Fig 1: Identifying Terminal Housings With Insulation Displacement Terminal

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

• For technical reasons, contact housings for insulation displacement application can be supplied only with insulation displacement contacts slid on.
• If these contacts are not needed, they can be removed as on any other contact housing.
• Repair wires that already have the corresponding contacts crimped on are available.
