Rear Lid Adjustment Dimensions

-- Position rear lid in chassis cut-out just so that the gap measurement on the right equals the gap measurement on the left.

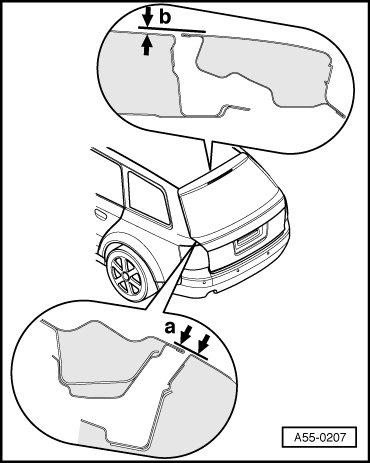

Fig 1: Positioning Rear Lid In Chassis Cut-Out Just So That Gap Measurement On Right Equals Gap Measurement On Left

Courtesy of AUDI OF AMERICA, LLC

-- Check whether chassis surface below rear window stands flush with chassis surface of lower side panel --a- arrows-.

-- Check whether rear lid is flush with roof (and projects slightly upward).

• Dimension -b- = 0 to 0.5 mm
