Rear Lid Seal
- Rear Lid Seal
- Removal:
-- Unclip trim panels on C-pillar and on roof.
-- Open rear lid and pull off seal at C-pillar to the side
-- Pull off seal from body flange in longitudinal direction at roof and at rear cross panel on bottom.
-- When installing, vulcanized butt joint of seal must be located in center of vehicle.

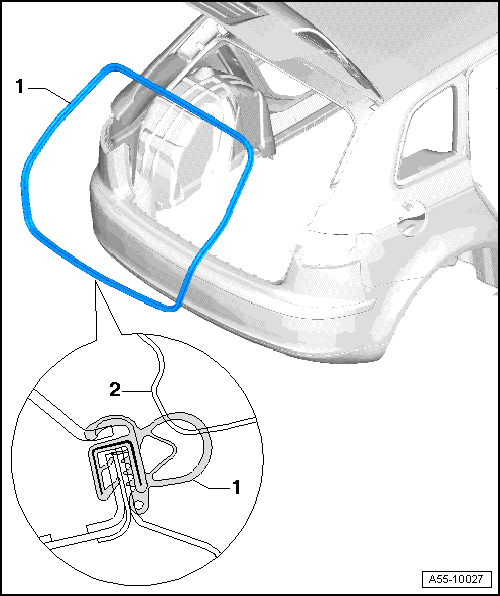

-- Press seal -1- onto body flange as shown.
- Removal:
