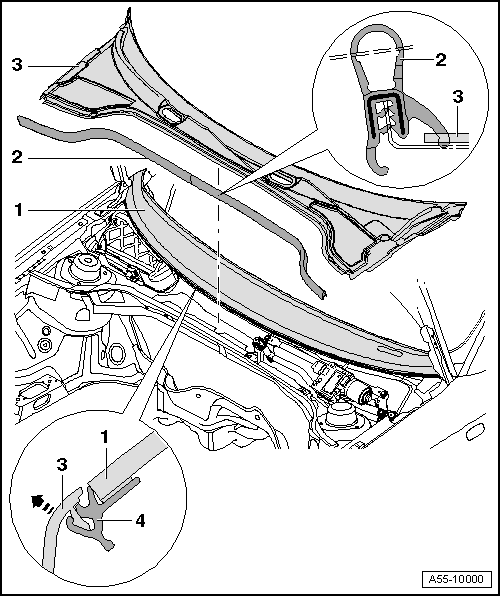

Plenum Chamber Cover Seal
- Windshield
- Plenum Chamber Seal
- Plenum Chamber Cover
- Clamping Strip for Cover
-- Before removing, first pull off seal for plenum chamber -2- upward and remove windshield washer jets.
-- To remove, lift cover at front and press out cover -3- starting from outside in -direction of arrow- as close as possible to clamping strip -4- using a tool, for example, a tire iron.
CAUTION:When prying out cover, do not push up the clamping strip -4-. This would press the clamping strip off the windshield and is not sealed in this area
-- When doing this, support tire iron using, for example, a wood block of approximately. 4 cm in height on top suspension strut dome.
-- When installing, cover must not be driven on, but cover must be pressed into clamping strip in stages.
-- Clamping strip may otherwise be pressed off the windshield and is not sealed in this area.
