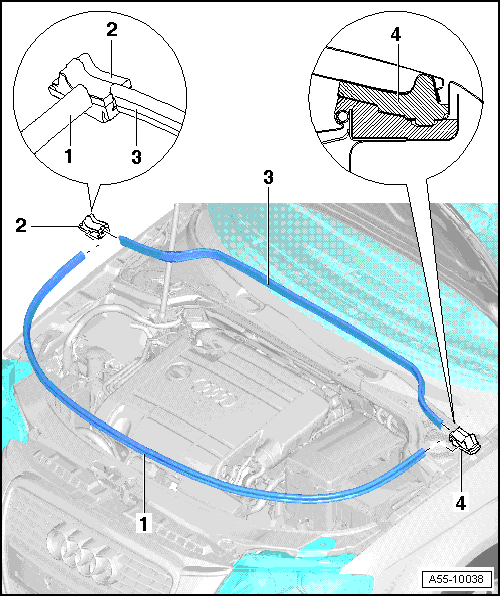

Hood Seal
Courtesy of AUDI OF AMERICA, LLC
- Lock Carrier Seal
- Position seal at center on lock carrier (note center marking) and slide onto flange at lock carrier and fender at side.
- Left Sealing Profile
- Self-adhesive
- Before installing, adhesion surface must be free of dust and grease.
- Pull off protective paper and press on seal firmly.
- Plenum Chamber Seal
- Bring molded part -arrows- into contact and press seal onto flange from above, working from outside toward inside.
- Right Sealing Profile
- Self-adhesive
- Before installing, adhesion surface must be free of dust and grease.
- Pull off protective paper and press on seal firmly.
