Hood Lining

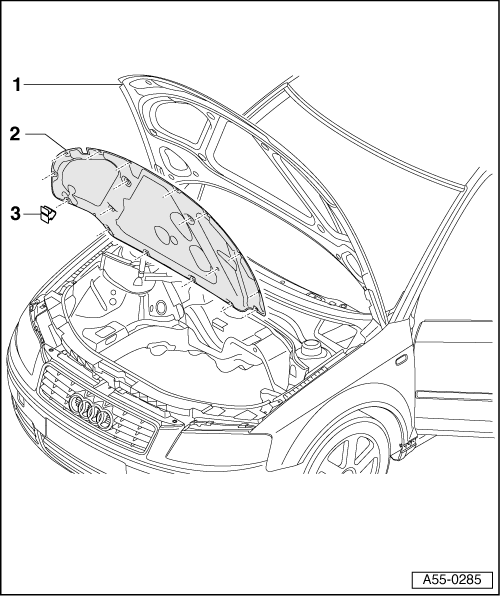

Fig 1: Identifying Hood Lining
GWWA55-0285Courtesy of AUDI OF AMERICA, LLC
  1. Hood
  2. Hood Lining
    • Pull out all clips from lining and remove from hood.
  3. Retaining Clip
    • Quantity: 18
