Electrical sun shade threaded connection in luggage compartment

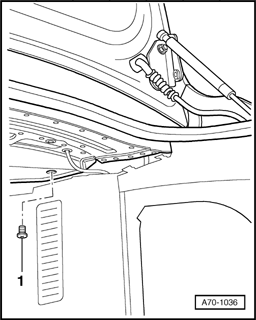

Fig 1: Electrical Sun Shade Threaded Connection In Luggage Compartment

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove bolts - 1  - (qty. 4).

• Tightening torque 4 Nm.
