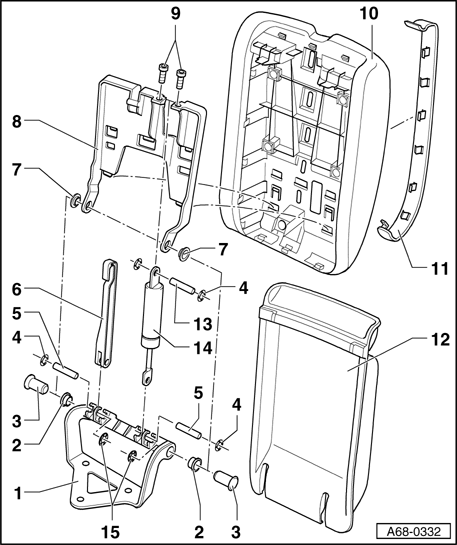

One-Piece Center Armrest, Disassembling and Assembling

1 - Bracket

• Removing and Installing → One-Piece Center Armrest Bracket, Removing and Installing

2 - Bushing

3 - Joint pin

4 - Locking washer

• Replace after each disassembly

5 - Bolts

6 - Stop

• Removing and Installing → One-Piece Center Armrest Stop, Removing and Installing

7 - Bushing

8 - Carrier

• Removing and Installing → One-Piece Center Armrest Carrier, Removing and Installing

9 - Bolts (Qty. 2), 2 Nm

10 - Padding

• Removing and Installing → One-Piece Center Armrest Upholstery, Removing and Installing

11 - Cover strip

• Discontinued

12 - Cover

• Removing and Installing → One-Piece Center Armrest Cover, Removing and Installing

13 - Bolts

14 - Gas-filled strut

• Removing and Installing → One-Piece Center Armrest Gas-Filled Strut, Removing and Installing

15 - Locking washer

• Replace after each disassembly
