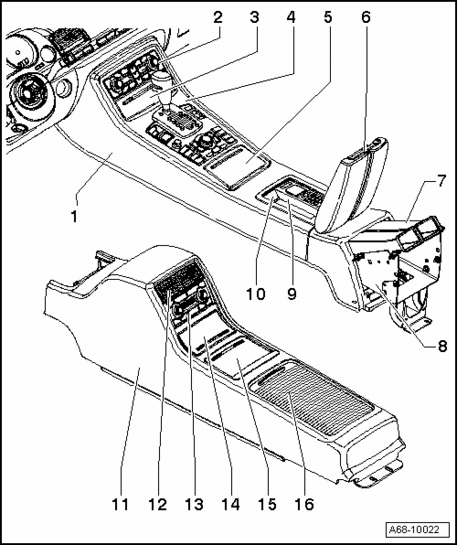

Center Console with Extension, Component Locations

1 - Center console (with extension)

• Removing and Installing → Center Console with Extension, Removing and Installing

2 - Front A/C controls

• Removing and Installing → Front A/C Controls, Removing and Installing

3 - Front ashtray

• Removing and Installing → Front Ashtray, Removing and Installing

4 - Center console panel with multimedia control unit

• Removing and Installing → Center Console Trim with Multimedia Control Head, Removing and Installing

5 - Cup holder in front center console

• Removing and Installing → Front Center Console Cupholder, Removing and Installing

6 - Center armrest

• One-piece, removing and installing → One-Piece Center Armrest, Removing and Installing
• One-piece, disassembling and assembling → One-Piece Center Armrest, Disassembling and Assembling
• Split, removing and installing → Divided Front Center Armrest, Removing and Installing
• Split, disassembling and assembling → Divided Front Center Armrest, Disassembling and Assembling

7 - Intermediate piece for air guides

• Removing and Installing → Air Duct Adapter, Removing and Installing

8 - Bracket for center console extension

9 - Handset mount

• Removing and Installing → 91 - COMMUNICATION

10 - Storage compartment

• Removing and Installing → Center Console Storage Compartment, Divided Center Armrest, Removing and Installing

11 - Center console extension

• Removing and Installing → Center Console Extension, Removing and Installing

12 - Rear vent

• Removing and Installing → Rear Vents and Rear Climatronic Control Head, Removing and Installing

13 - Rear A/C controls

• Removing and Installing → Rear Vents and Rear Climatronic Control Head, Removing and Installing

14 - Small storage compartment

• Removing and Installing → Small Storage Compartment, Removing and Installing
• Removing and installing small storage compartment cover → Cupholder and Small Storage Compartment Cover, Removing and Installing

15 - Rear cup holder

• Removing and Installing → Cupholder Unit with Small Storage Compartment Cover, Removing and Installing
• Removing and installing cup holder cover → Cupholder and Small Storage Compartment Cover, Removing and Installing

16 - Large storage compartment

• Removing and Installing → Large Storage Compartment, Removing and Installing
• Removing and installing sliding cover for large storage compartment → Large Storage Compartment Sliding Cover, Removing and Installing
