Securing pressure and intake lines on the engine
WARNING: This page is about a different variant/trim than selected.

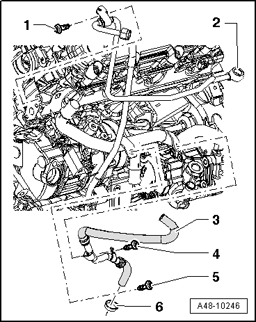

- Secure pressure line - 2 - at top left on face side of the engine using a bolt - 1 -.
- Secure suction hose - 3 - on coolant pipe using bolts - 4 - and - 5 -.
- Secure suction hose - 3 - on power steering pump using a clamping sleeve - 6 - → Suction Hoses to Power Steering Pump and Reservoir, 8-Cylinder FSI, Installation Location .
