Rear Axle Toe, Adjusting
WARNING: This page is about a different variant/trim than selected.

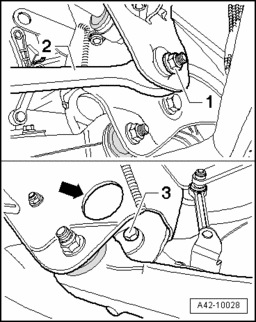

- Remove nut - 1 - on tie rod - 2 - and subframe connection.
- Adjust toe by turning eccentric bolt - 3 -.
Use hole - arrow - in subframe to turn eccentric bolt.
- Install a new nut - 1 - and tighten it.
Specified values for wheel alignment → Wheel Alignment Specifications .
NOTE:
- The maximum adjustment range is 90 to left or right of center position.
- The geometric drive axle is automatically changed when individual toe settings are changed.
- After tightening nut - 1 - , check toe value again.
