Routing "green" air line to the right front air spring damper
WARNING: This page is about a different variant/trim than selected.
Courtesy of VOLKSWAGEN UNITED STATES, INC.

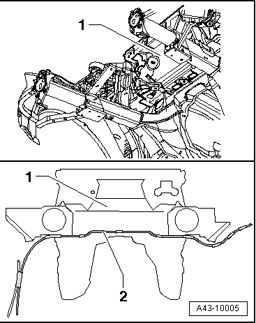

The "green" air line - 2
- runs along the engine compartment/interior noise insulation - 1
- from the solenoid valve block to the air spring damper.
