Air Line, Servicing

WARNING: This page is about a different variant/trim than selected.

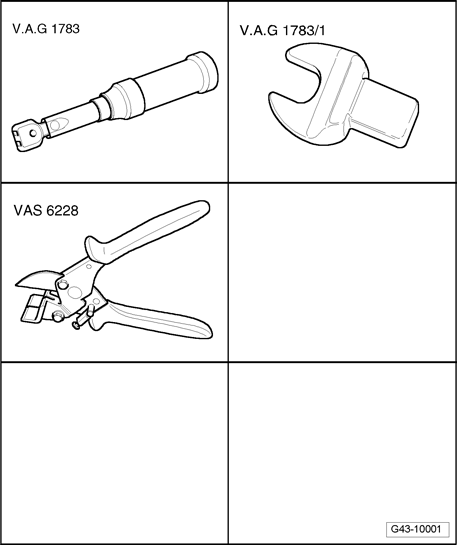

Fig 1: Identifying Special Tools - Air Line, Servicing
GW00022852Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

If the air line is damaged, the damaged area can be replaced.

If the connection leaks, air line can be shortened by 10 mm and a new connecting piece installed → Connector Piece, Replacing .

NOTE:
  • The air line between the air supply unit and the solenoid valve block is replaced completely with original line. Different versions . Route the air line between the air supply unit and the solenoid valve block parallel to the wiring harness.
  • The air line between the left front air spring damper and the solenoid valve block is replaced completely with original line. Route the air line between the air supply unit and the solenoid valve block parallel to the wiring harness.
  • The air line between the solenoid valve block and the right front air spring damper is only replaced with original line in the right wheel housing. Shorten the original line as needed. On the left side, the line is replaced with parts from the repair kit.
  • Damaged air lines in the interior are replaced completely with original line. Route the new air line along the air line/wiring harness. Secure the new air line at the locations marked. Replace cut cable ties if necessary.
  • Before disconnecting an air line connection, clean the connection area. Connection Areas, Overview → Connection Areas, Overview:  under Air Line, Servicing  .
  • Contaminants entering the lines can lead to system malfunction.
Fig 2: Marking Line End Of Air Line In Vehicle And Both Ends Of New Air Line
GW00022853Courtesy of VOLKSWAGEN UNITED STATES, INC.

With 17 mm or 22 mm markings, check whether connector piece is inserted far enough in air line.

NOTE:
  • Connector pieces in line connector are already tightened to proper torque. Air lines only have to be connected.
Fig 3: Identifying Sealing Rings, Edges, And Cutting Ring
GW00022854Courtesy of VOLKSWAGEN UNITED STATES, INC.

Connection Areas, Overview:

Fig 4: Connection Areas, Overview
GW00029573Courtesy of VOLKSWAGEN UNITED STATES, INC.

Right front air spring damper separation point in the right wheel housing

  1. Air line (shortened new original line)
  2. Foam rubber, 10-15 mm long
  3. Line connector
  4. Plug socket cable tie, for line connectors to the wiring harness
NOTE:
  • In this area, the original line must be used as a replacement because only the original line has the foam rubber protector. Also, the original line has a very narrow radius in the area where it connects to the air spring damper. This narrow radius cannot be created on the air line from the repair kit.

Right front air spring damper separation point in the left wheel housing

Fig 5: Right Front Air Spring Damper Separation Point In Left Wheel Housing
GW00029574Courtesy of VOLKSWAGEN UNITED STATES, INC.
  1. Air line
  2. Plug socket cable tie
  3. Foam rubber, 10-15 mm long
  4. Line connector
  5. Cable tie, for the line connector to the wiring harness

Separation points near the solenoid valve block for the air lines routed to the back

Fig 6: Line Bracket & Cable Ties
GW00029575Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • The illustration shows all three line connectors for the air lines routed through the interior.

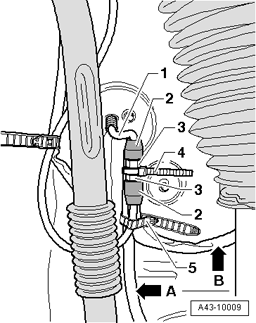

Right rear air spring damper separation point

Fig 7: Air Line, Foam Rubber, Line Connector, Cable Ties & Wiring Harness
GW00029576Courtesy of VOLKSWAGEN UNITED STATES, INC.
  1. Air line
  2. Foam rubber, 10-15 mm long
  3. Line connector
  4. Cable tie, for the line connector to the wiring harness
  5. Cable tie

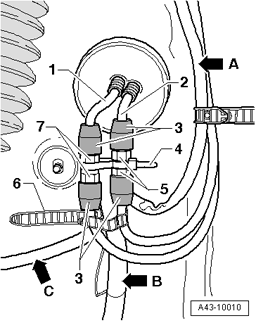

Separation point for left rear air spring damper and pressure reservoir.

Fig 8: Line Connectors For Left Rear Air Lines
GW00029577Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • The illustration shows both line connectors for the left rear air lines.
  1. Purple air line (shortened new original line), for pressure reservoir
  2. Black air line, for left rear air spring damper
  3. Foam rubber, 10-15 mm long
  4. Cable tie, for the line connector to the wiring harness
  5. Line connector, for the black air line
  6. Cable tie
  7. Line connector, for the purple air line
NOTE:
  • The original line must be used as a replacement for the purple air line because only the original line has the foam rubber protector.

Tightening specifications

Component
Connector piece in solenoid valve block 2 Nm
Connecting piece in air supply unit 2 Nm
Connecting piece in air spring damper 3 Nm
Connector piece in pressure reservoir 5 Nm
Connecting piece in line connector 5 Nm
