Individual mounting components for exhaust manifold with catalytic converters

WARNING: This page is about a different variant/trim than selected.

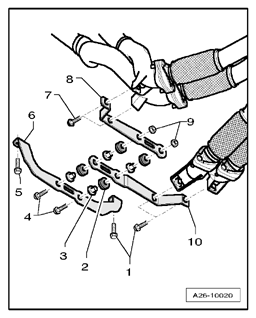

Fig 1: Individual Mounting Components For Exhaust Manifold With Catalytic Converters
GW00029223Courtesy of VOLKSWAGEN UNITED STATES, INC.
  1. Bolt, 25 Nm
  2. Rubber grommet
  3. Bushing
  4. Bolt
  5. Bolt, 25 Nm
  6. Front bracket, installed location
  7. Bolt, 25 Nm
  8. Left bracket, installed location
  9. Nut, 25 Nm
  10. Right bracket, installed location
