Center muffler and rear muffler, removing and installing: Notes

WARNING: This page is about a different variant/trim than selected.

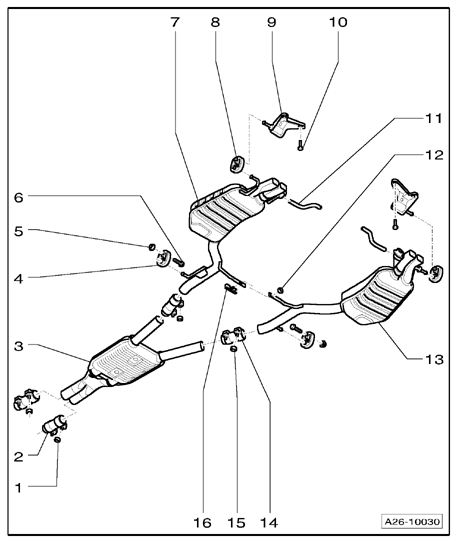

Fig 1: Enter Muffler And Rear Muffler Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - 23 Nm

2 - Front clamping sleeve

Before tightening, ensure exhaust system is tension-free → Exhaust system, installing free of tension
Installation position of bolt ends Installed position of front double clamps
Fasten threaded fasteners uniformly, while pushing center muffler exhaust pipe upward slightly

3 - Center muffler

4 - Retaining loop

Checking pretension, → Exhaust system, installing free of tension ; Exhaust system, installing free of tension

5 - 23 Nm

6 - Bolt

7 - Rear muffler

For left side of vehicle
With exhaust flap
Original equipment as one unit with center muffler. For repairs, replace each separately.
Separating point Figure

With shield, depending on version
When replacing a single rear muffler, remove shield from opposite rear muffler Shield on rear muffler
Install exhaust system free of stress → Exhaust system, installing free of tension
Exhaust flap, checking → Exhaust flaps, checking

8 - Retaining loop

9 - Suspended mount

10 - 22 Nm

11 - Vacuum hose

12 - 23 Nm

13 - Rear muffler

For right side of vehicle
With exhaust flap
Original equipment as one unit with center muffler. For repairs, replace each separately.
Separating point Figure

With shield, depending on version
When replacing a single rear muffler, remove shield from opposite rear muffler Shield on rear muffler
Install exhaust system free of stress → Exhaust system, installing free of tension
Exhaust flap, checking → Exhaust flaps, checking

14 - Rear clamping sleeve

For individual replacement of center and rear mufflers
Before tightening, ensure exhaust system is tension-free → Exhaust system, installing free of tension
Installed location Installed position of rear double clamps
Tighten threaded connections evenly

15 - 23 Nm

16 - Clamping piece
