Right front coolant pipe, removing and installing

WARNING: This page is about a different variant/trim than selected.

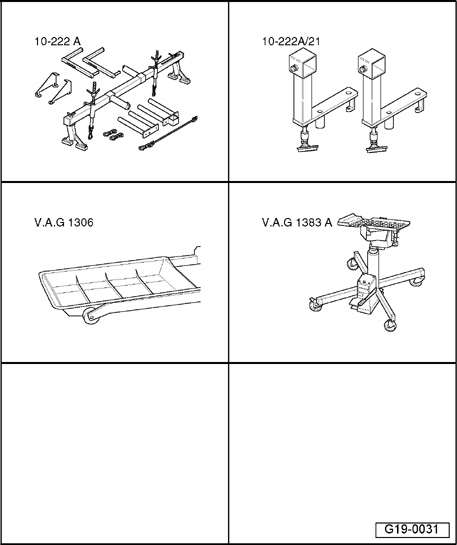

Fig 1: Identifying Special Tools - Right Front Coolant Pipe, Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Engine support bridge 10-222 A
Brace 10-222 A/21
Drip tray V.A.G 1306 or drip tray for workshop crane VAS 6208
Engine/transmission jack V.A.G 1383 A

Special tools, testers and auxiliary items required

Fig 2: Hose Clamp Pliers V.A.G 1921

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Hose clamp pliers V.A.G 1921

Removing

Fig 3: Left Air Duct & Hose

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect hose - 1 - from air duct.
Remove left air duct - arrows -.

Fig 4: Mass Air Flow (MAF) Sensor G70 Electrical Connector, Upper Part Of Air Filter Housing Connections, Intake Manifold Air Duct Hose & Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect electrical connector - 1 - for right Mass Air Flow (MAF) sensor G70 on air filter housing.
Disconnect air duct hose - 4 - at intake manifold.
Unhook retainer for connections - 2 - and - 3 - at upper part of air filter housing.
Remove bolts - arrows -.

Remove upper part of right air filter housing.

Fig 5: Electrical Connectors & Vacuum Hoses

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect vacuum hose - 4 - from Evaporative Emission (EVAP) canister purge regulator valve N80.

NOTE:

Ignore - 1 to 3 - in the illustration.

Fig 6: Vacuum Hose, Bolts, Crankcase Breather Hoses & Throttle Valve Control Module J338 Electrical Connection

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect electrical connection - 6 - at Throttle valve control module J338.
Disconnect vacuum hose - 1 -.
Disconnect hoses - 4 - and - 5 - for crankcase breather.
Remove bolts - 2 - and - 3 -.

Remove right intake manifold side part.

Fig 7: Cover Above Coolant Reservoir

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove cover above coolant reservoir - arrows -.

CAUTION: Cover the cap of the expansion tank with a rag and open it carefully, as hot steam, i.e. hot coolant, may escape when opening.

Open cap of coolant expansion tank.

Fig 8: Plenum Chamber Covers & Rubber Seal

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove rubber seal - 1 - for plenum chamber covers.
Remove plenum chamber covers - 2 - and - 3 -.

Fig 9: Securing Engine Support Bridge 10 - 222 A With Adapters 10 - 222 A/21 At Suspension Strut Domes

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Unclip fuel lines from retainer on strut tower.
Remove rear bolts - 3 - for strut tower brace.
Secure engine support bridge 10-222 A with supports 10-222 A/21 to strut towers.

The supports are marked for left and right side of the vehicle.
The middle contact point - 2 - of the support is placed on the front bolts for the strut tower brace.
The supports 10-222 A/21 are secured with the rear bolts - 3 - for the strut tower brace.
The knurled thumb screw - 1 - must be turned downward far enough so that the contact plate rests on the strut tower.

Fig 10: Securing Spindles Of Engine Support Bridge 10 - 222 A At Rear Engine Lifting Eyes

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Secure spindles of engine support bridge 10-222 A at rear engine lifting eyes.
Pre-tension engine slightly using engine support bridge spindles.
Remove both front wheels.

NOTE:

Secure the brake discs with wheel bolts.

Fig 11: Identifying Exhaust Pipe Fasteners

Courtesy of VOLKSWAGEN UNITED STATES, INC.

For vehicles with auxiliary heater, remove bolts - arrows - for exhaust pipe of auxiliary heater on noise insulation.

Fig 12: Noise Insulation Quick-Release Fasteners

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Loosen quick-release fasteners - 1 - and - 2 - and remove sound insulation.

Fig 13: Bracket For Sound Insulation

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bracket for sound insulation - arrows -.

Fig 14: Right Front Coolant Pipe Lower Bolt

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolt - arrow - at bottom of right coolant pipe.

Fig 15: Identifying Left Level Control System Sensor Electrical Harness Connector & Left/Right Control Arms Coupling Rod

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect electrical harness connector - 2 - at left and right Level Control System sensors.

NOTE:

Ignore - 1 - in the illustration.

Fig 16: Stabilizer & Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Loosen and remove bolts - arrows - uniformly at left and right sides of vehicle.
Remove stabilizer.

Fig 17: Supporting Engine Carrier And Subframe Using Engine/Transmission Jack V.A.G 1383 A

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Support engine carrier and subframe using engine/transmission jack V.A.G 1383 A as shown in illustration.

Fig 18: Engine Carrier Left/Right Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - 2 - and - 3 - on both sides of vehicle.
Then, loosen and remove bolt - 1 - on left and right sides of vehicle uniformly (alternating between left and right sides of vehicle).
Remove engine carrier.

Fig 19: Coolant Hose & Bolt

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Place drip tray V.A.G 1306 or drip tray VAS 6208 under engine.
Disconnect coolant hose - 2 - from coolant pipe and drain coolant.
Disconnect coolant pipe from coolant hose - 1 -.

NOTE:

Disregard - arrow -.

Installing

Installation is in reverse order of removal. Note the following:

NOTE:

Secure all hose connections using hose clamps appropriate for the model type .

Install subframe → 40 - FRONT SUSPENSION .
Install stabilizer → 40 - FRONT SUSPENSION .
Install right intake manifold side part: → Intake Manifold Right Side, Removing and Installing .
Install strut tower brace → 40 - FRONT SUSPENSION .

Fill with coolant → Filling under Cooling System, Draining and Filling
Deactivate vehicle lifting mode → 43 - Self Leveling Suspension .

Tightening torques

Component	Nm
Engine mount to engine carrier	23
Engine carrier to longitudinal member	68
Lower coolant pipe to engine carrier	10
Bracket for sound insulation to subframe	10
