Drive Plate, Assembly Overview

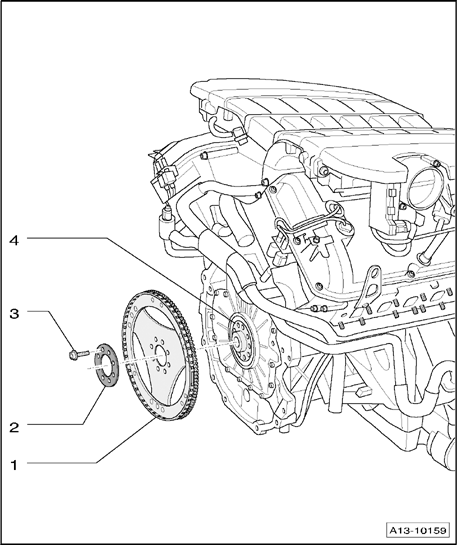

Fig 1: Drive Plate, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Drive plate

• Removing and installing → Drive Plate, Removing and Installing
• Mark for reinstallation

2 - Washer

• Mark for reinstallation

3 - 60 Nm plus ¹ /₄ turn (90)

• Replace

4 - Crankshaft
