Engine, Securing to Engine and Transmission Holder

WARNING: This page is about a different car, the 2009 Audi S8, 2008 Audi S8, and 2007 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

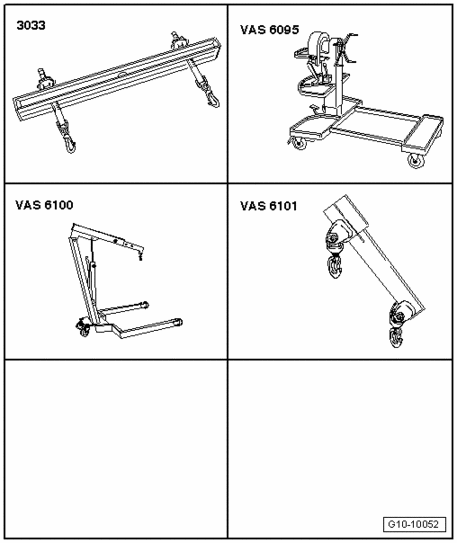

Fig 1: Identifying Special Tools - Engine, Securing To Engine And Transmission Holder

GW00022269

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Lifting tackle 3033
Engine and transmission holder VAS 6095 with bracket VAS 6095/1-7
Shop crane VAS 6100
Lift arm extension for workshop crane VAS 6101

Procedure

Fig 2: Engine Support Bolts

GW00029024

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect electrical harness connector - arrow - at left engine mount.
Remove bolts - 1 to 4 - and remove engine support from engine mount.
Disconnect electrical harness connector - arrow - at right engine mount.

Fig 3: Engine Support Bolts

GW00029025

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - 1, 2, 3 - and remove engine support from engine mount.

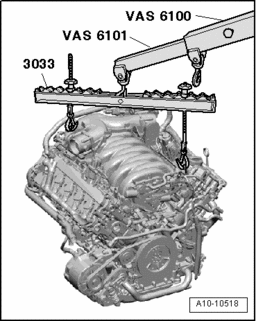

Fig 4: Engaging Lifting Tackle 3033 On Engine Lifting Eyes And On Shop Crane VAS 6100 With Lift Arm Ext./Workshop Hoist VAS 6101

GW00022272

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Engage Lifting Tackle 3033 on engine lifting eyes and on Shop Crane VAS 6100 with Lift Arm Ext./Workshop Hoist VAS 6101 as shown in the illustration.
Lift engine from support elements of Scissor Lift Table VAS 6131 A.

Fig 5: Securing Engine To Engine And Transmission Holder VAS 6095/1-7 Using Holder VAS 6095

GW00017886

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Secure the engine to the engine and transmission holder VAS 6095/1-7 using Holder VAS 6095 , and tighten to 40 Nm as shown in the illustration.
