Back Mat, Removing and Installing

Removing

• Remove rear seat bench → Rear Bench Seat, Removing and Installing .
• Remove rear seat backrest → Rear Backrest, Removing and Installing .

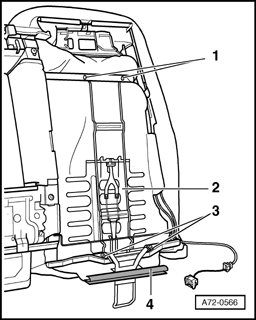

Fig 1: Left/Right Sides At Positions & Roller Blind

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Pry fastening strip - 4  - out with a screwdriver.
• Disengage back mat - 2  - at top on pins - 1  - (2x).
• Disengage back mat - 2  - at bottom on holders - 3  - (2x).
• Remove back mat - 1  -.

Installing

• Install back mat - 1  - in reverse order of removal.
