Rear Shelf Replacement Parts, Removing and Installing

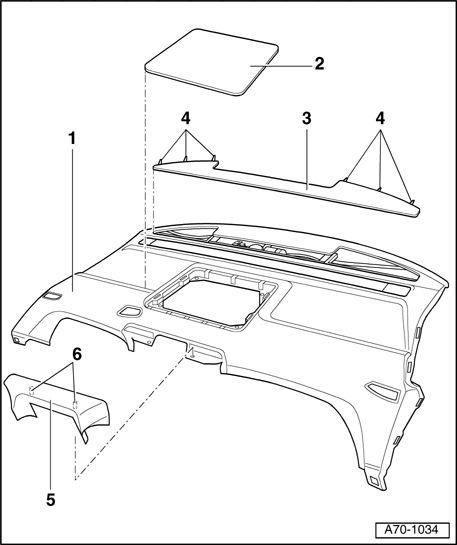

Fig 1: Rear Shelf Replacement Part Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rear shelf

2 - Speaker grille

• Removing

• Pry out speaker grille - 2  - upward.

3 - Ventilation grille with third brake light

• Removing

• Unclip ventilation grille - 3  - upward from clips - 4  - (6x) and pull out ventilation grille - 3  - inward.

4 - Clips (6x)

5 - Cover

• Removing

• Unclip cover - 5  - at clips - 6  - (2x) and pull out cover - 5  - inward.

6 - Clips (qty. 2)
