Divided Front Center Armrest, Removing and Installing

Special tools, testers and auxiliary items required

• Torque wrench V.A.G 1410

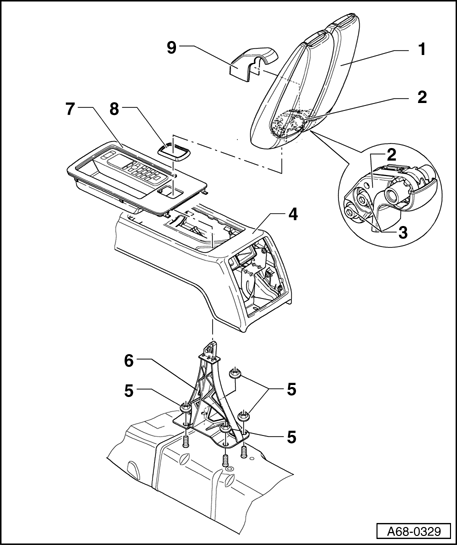

1 - Center armrest

• Divided version
• Removing

• Switch off ignition.
• Bring center armrest - 1  - upward.
• Remove upper trim support foot - 9  -.
• Remove bolts - 3  - (qty. 2).

• Remove center armrest - 1  - from lower support foot - 6  -.

• Installing

Installation is reverse of removal.

2 - Upper support base

• Part of the center armrest delivery package

3 - Bolts (Qty. 2), 18 Nm

4 - Center Console

5 - Nut (Qty. 4), 18 Nm

6 - Lower support base

• Removing and Installing → Lower Support Base, Divided Front Center Armrest, Removing and Installing

7 - Storage compartment

• Removing and Installing → Center Console Storage Compartment, Divided Center Armrest, Removing and Installing

8 - Grommet

9 - Upper support base trim

• Clipped
