Rear A/C Controls, 4-Zone A/C System, Removing and Installing

Removing

• Switch off ignition.

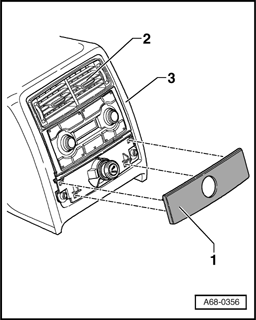

Fig 1: Rear Center Console Panel, Rear Air Vents, 4-Zone A/C System & Center Console

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Unclip rear center console panel - 1  -.

2 - Rear air vents, 4-zone A/C system

3 - Center Console

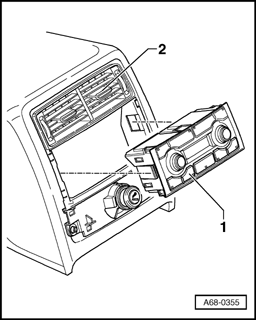

Fig 2: Rear A/C Controls & Center Console

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Pull rear A/C controls - 1  - out of center console - 2  -.
• Disconnect electrical connectors.
• Remove rear A/C controls.

Installing

Installation is reverse of removal.
