Seat Pan Cover, Separating from Upholstery

Special tools, testers and auxiliary items required

Fig 1: Awl V.A.G 1636 A

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Awl V.A.G 1636 A

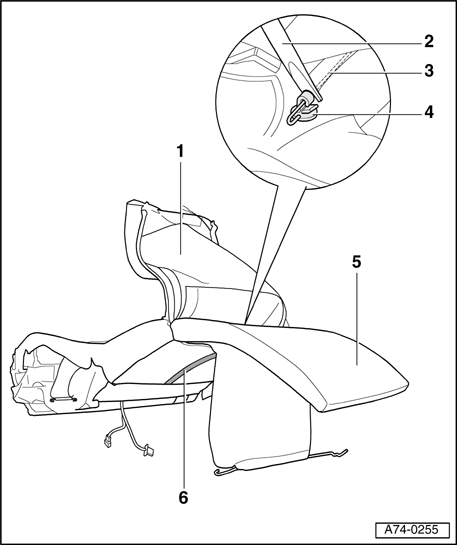

Fig 2: Cover, Awl V.A.G 1636 A, Bracket, Plastic Clips, Upholstery & Retaining Strip

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cover

• Removing

• Open retaining strip - 6  -.
• Lift cover - 1  - at front.
• Using the awl V.A.G 1636 A - 2  -, pry the bracket - 3  - out of the plastic clips - 4  -.
• Remove cover - 1  - from upholstery - 5  -.

• Installing

• Replaced damaged plastic clips.
• First press retainers of cross braces into plastic clips.
• Install cover in reverse order of removal.

2 - Awl V.A.G 1636 A

3 - Retainer

4 - Plastic clips

5 - Upholstery

6 - Retaining strip
