Rear LATCH Bracket, Power Individual Seats, Removing and Installing

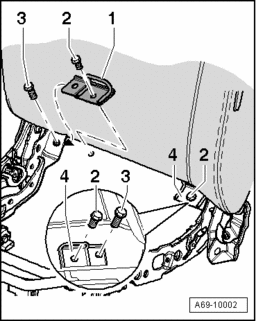

Fig 1: Rear Latch Bracket, Power Individual Seats, Removing/Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove seat pan → Seat Pan, Removing and Installing .

Outer LATCH bracket - 4 -

• Remove screw - 2  -. 40 Nm.
• Remove screw - 3  -. 55 Nm.
• Remove LATCH bracket - 4  -.

Center LATCH bracket - 1 -

• Remove screw - 2  -. 40 Nm.
• Remove screw - 3  -. 55 Nm.
• Loosen a few turns the front inner bolt of electric individual seats.
• Pull out LATCH bracket - 1  - beneath electric individual seat.

• To install, the LATCH bracket - 1  - must be slid underneath the electric individual seat.
• The electric individual seat and LATCH bracket - 1  - are fastened with bolt - 3  -.
