Battery Switch-Off Relay, Removing and Installing
NOTE:
- Vehicle voltage supply is disrupted during an actuator test (as of software version S082 and S084, the knob is no longer triggered during an actuator test) or vehicle accident.
- Battery Switch-Off Relay J655 disconnects the circuit electrically. The Battery Switch-Off Relay J655 must always be replaced after a deployment.

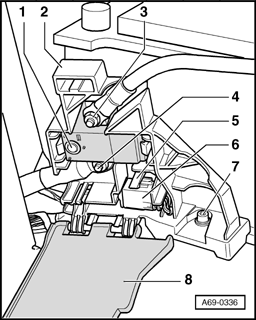

Removing with knob
- Open cover - 8 -.
- Remove screw - 7 -.
- Unscrew pole - 3 -.
- Unscrew pole - 4 -.
- Unclip the connector - 6 - at the retaining tabs - 5 - (Qty. 2).
- Disconnect connector - 6 -.
- Installing
- Install battery pole disconnect element - 2 - in reverse order of removal.

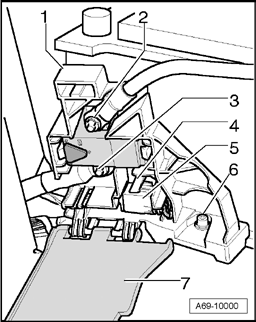

Removing without knob
- Open cover - 7 -.
- Remove screw - 6 -.
- Unscrew pole - 3 -.
- Unscrew pole - 2 -.
- Unclip the connector - 5 - at the retaining tabs - 4 - (Qty. 2).
- Disconnect connector - 5 -.
- Installing
- Install battery pole disconnect element - 1 - in reverse order of removal.
