Glove Compartment Lamp, Removing and Installing

Removing

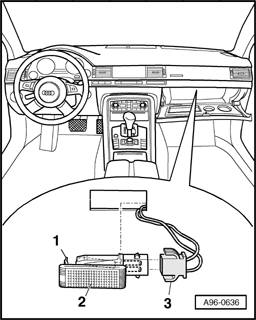

Fig 1: Catch, Glove Compartment Lamp & Electrical Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Turn light switch into "0" position.
• Press in catch - 1  - using a flat screwdriver and pry out glove compartment lamp - 2  -.
• Disconnect electrical connector - 3  -.
• Remove the bulb (12 V, 5 W) from the socket on the rear of the glove compartment lamp.

Installing

Install in reverse order of removal, observing the following:

• Insert glove compartment lamp into opening and engage on opposite side.
